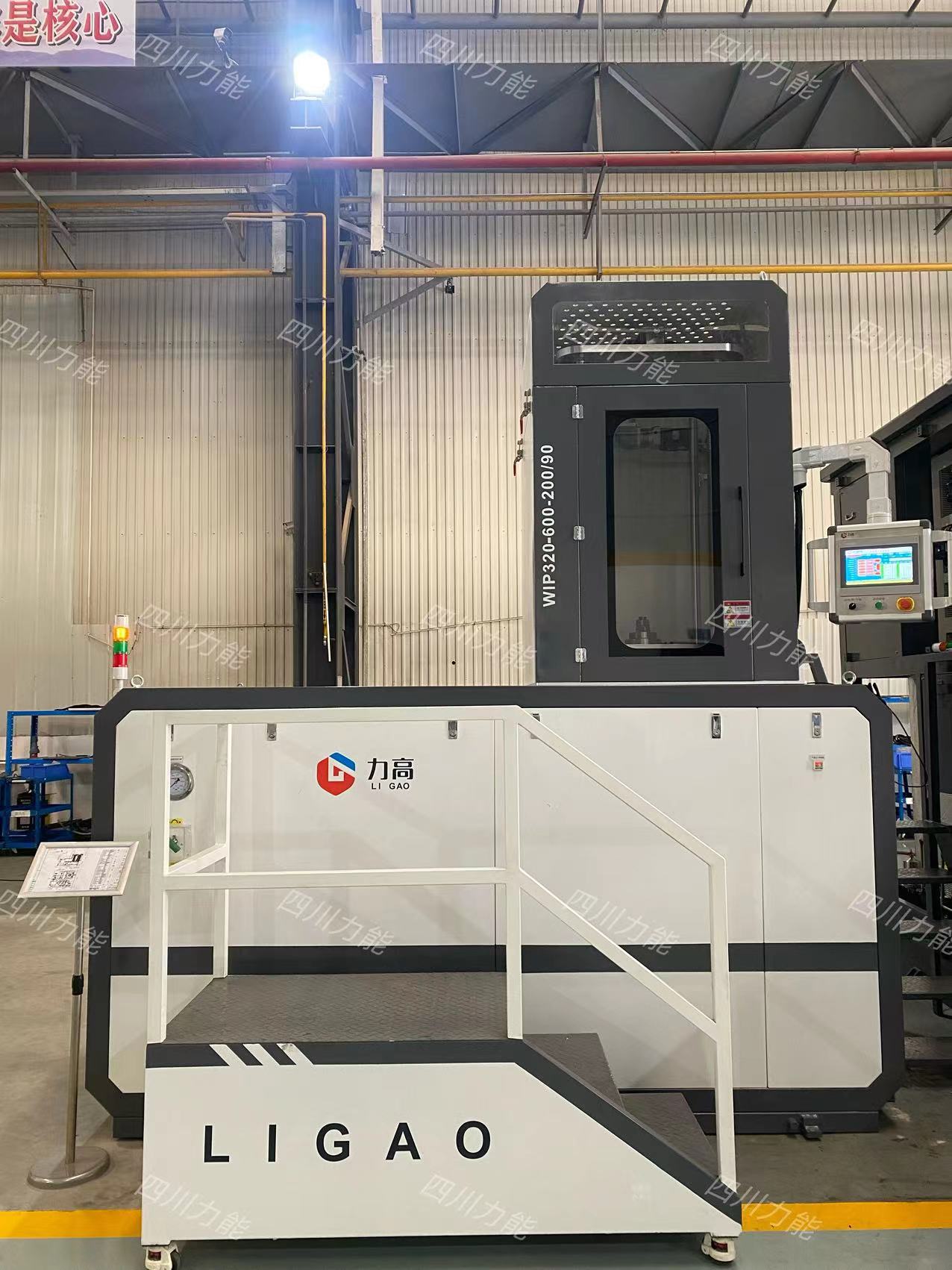

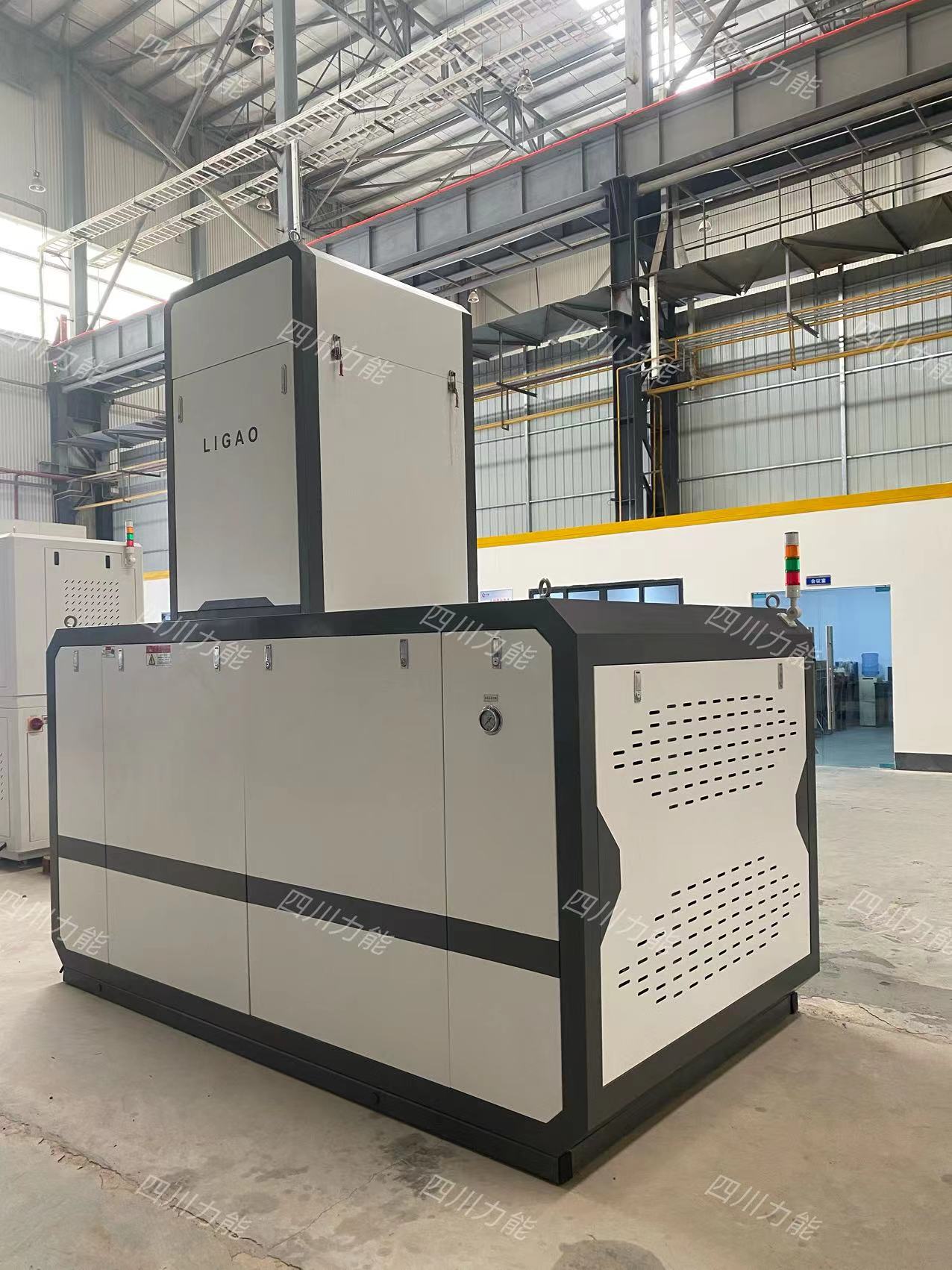

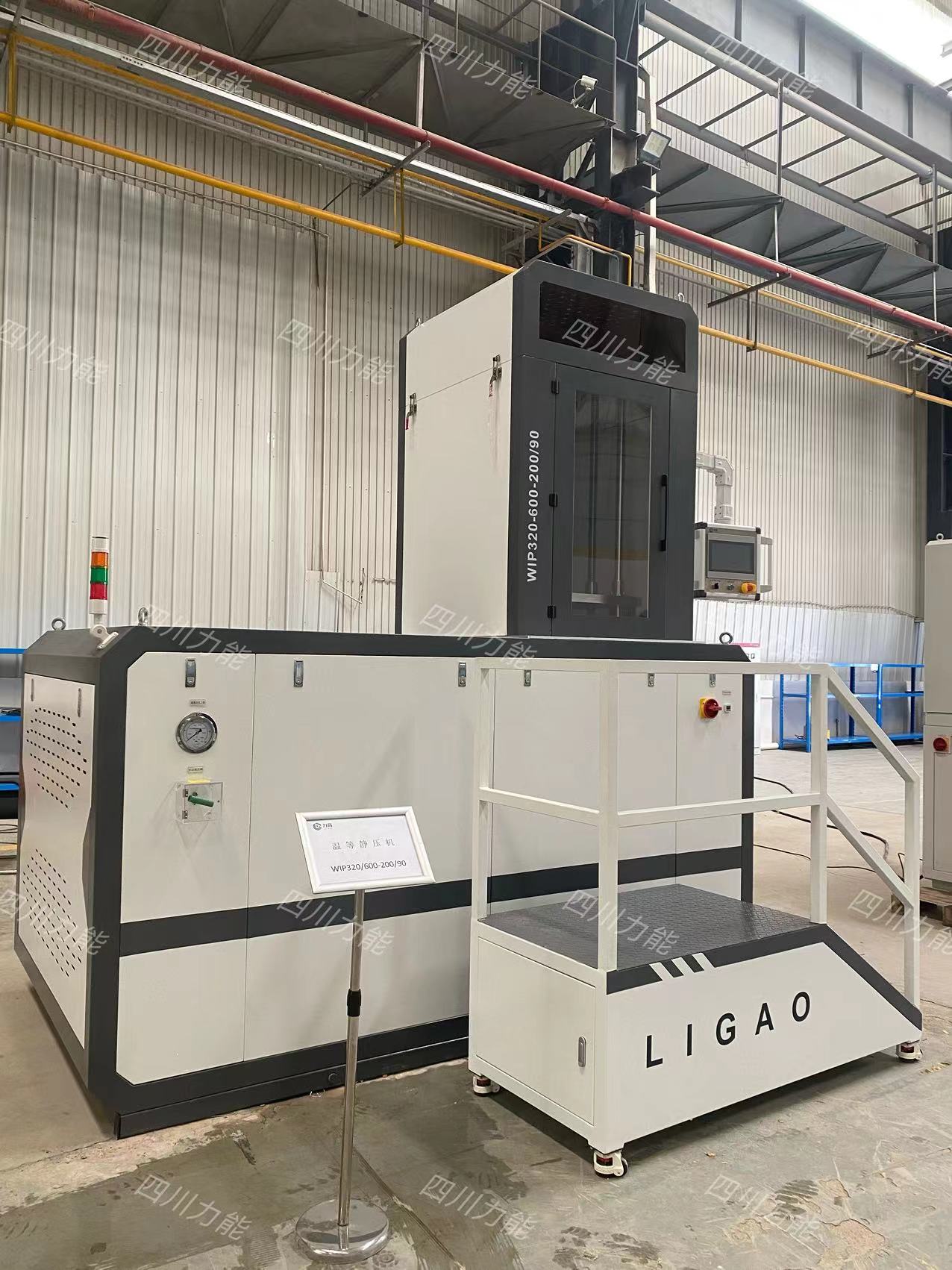

Warm Isostatic Pressing
It is mainly used for isostatic pressing equipment for powder materials to obtain a solid body under high temperature and pressure. Such as: solid-state batteries, electronic ceramics, multi-layer capacitors, graphite, polyamide rubber material molding, etc. In 2022, our company provided 450MPa, 600MPa, and 85°CTemperature isostatic press to a number of solid-state battery production enterprises, which has been put into continuous production and use, and the equipment is used normally and runs stably.
The pressing temperature is room temperature~85°C, and the working medium is pure water. The pressing temperature is in the room temperature~200°C, and the working medium is thermal conductive oil
Ifthe user has a working bore, effective working height and working pressure that is different from the table and needs to be tailor-made, or has specific requirements for the working medium and control system, the company can design and manufacture according to the user's requirements.
Thermostatic WIP-600 Series (Integral) Standard Specification Model Technical Parameter List List
Model | Cylinder inner diameter（mm） | The cylinder is high(mm) | Boost Time（min） | **Heating time(min) | temperature(℃) | Temperature control accuracy(℃) | **Work stress(MPa) | Pressurization method |
WIP200 | 200 | 300-1000 | 5 | 90 | room temperature-85（S） room temperature-200（Y） | ±2 | 600 | Gas-liquid booster pump set 0-600MPa |
WIP300 | 300 | 10 | 120 | |||||
WIP400 | 400 | 500-1000 | 16 | |||||
WIP500 | 500 | 500-1500 | 10-15 | 90-150 | room temperature-85（S） room temperature-200（Y） | ±3 | 400 | Hydraulic booster pump set 0-400MPa |
WIP630 | 630 | |||||||
WIP700 | 700 | |||||||
WIP800 | 800 |
1. The initial temperature rise time is related to The cylinder is high, and the specific temperature rise time is communicated with the manufacturer;
2. Different specifications of products can be customized according to customer needs;
3. Split Temperature isostatic press is mainly used for presses with large bore size.
Temperature isostatic press
Temperature isostatic press
Warm Isostatic Pressing
It is mainly used for isostatic pressing equipment for powder materials to obtain a solid body under high temperature and pressure. Such as: solid-state batteries, electronic ceramics, multi-layer capacitors, graphite, polyamide rubber material molding, etc. In 2022, our company provided 450MPa, 600MPa, and 85°CTemperature isostatic press to a number of solid-state battery production enterprises, which has been put into continuous production and use, and the equipment is used normally and runs stably.
The pressing temperature is room temperature~85°C, and the working medium is pure water. The pressing temperature is in the room temperature~200°C, and the working medium is thermal conductive oil
Ifthe user has a working bore, effective working height and working pressure that is different from the table and needs to be tailor-made, or has specific requirements for the working medium and control system, the company can design and manufacture according to the user's requirements.
Thermostatic WIP-600 Series (Integral) Standard Specification Model Technical Parameter List List
Model | Cylinder inner diameter（mm） | The cylinder is high(mm) | Boost Time（min） | **Heating Time(min) | temperature(℃) | Temperature control accuracy(℃) | **Work stress(MPa) | Pressurization method |
WIP200 | 200 | 300-1000 | 5 | 90 | room temperature-85（S） room temperature-200（Y） | ±2 | 600 | Gas-liquid booster pump set 0-600MPa |
WIP300 | 300 | 10 | 120 | |||||
WIP400 | 400 | 500-1000 | 16 | |||||
WIP500 | 500 | 500-1500 | 10-15 | 90-150 | room temperature-85（S） room temperature-200（Y） | ±3 | 400 | Hydraulic booster pump set 0-400MPa |
WIP630 | 630 | |||||||
WIP700 | 700 | |||||||
WIP800 | 800 |
1. The initial temperature rise time is related to The cylinder is high, and the specific temperature rise time is communicated with the manufacturer;
2. Different specifications of products can be customized according to customer needs;
3. Split Temperature isostatic press is mainly used for presses with large bore size.
