The browser's built-in sharing function is also very useful~Temperature isostatic press

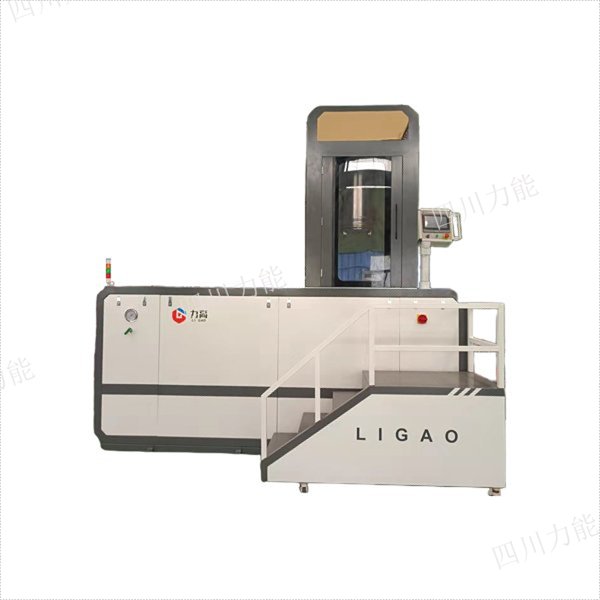

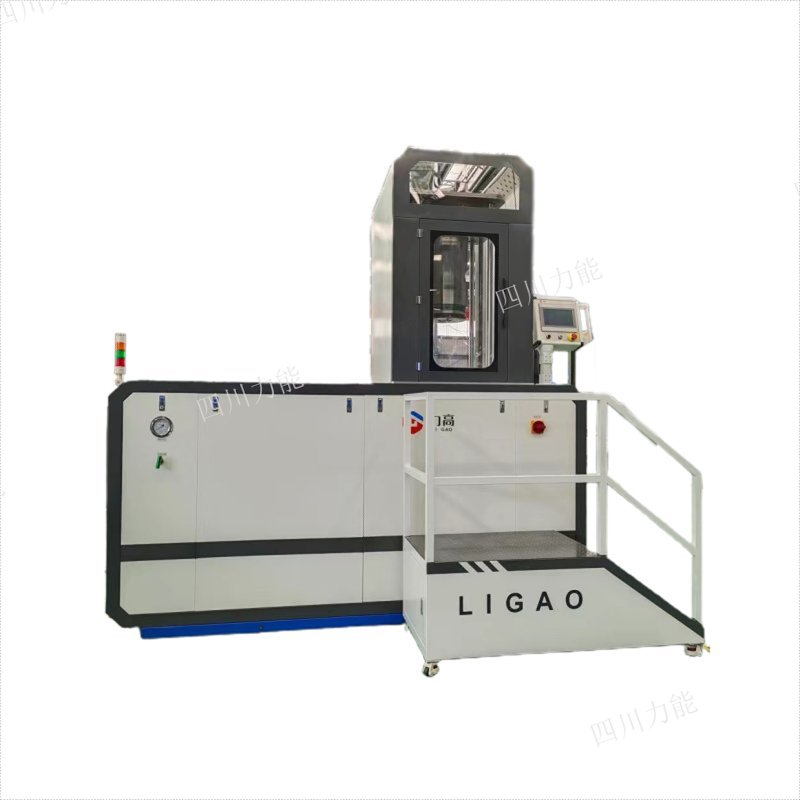

Warm Isostatic Pressing
It is mainly used for isostatic pressing equipment for powder materials to obtain a solid body under high temperature and pressure. Such as: solid-state batteries, electronic ceramics, multi-layer capacitors, graphite, polyamide rubber material molding, etc. In 2018, our company successfully developed a water-type temperature isostatic press (bore 520mm, maximum pressure 120MPa), and delivered it to the customer for use; From 2018 to 2021, it has successively cooperated with a number of large-scale MLCC manufacturing enterprises to produce and deliver multiple units (bore 320mm, maximum force 200MPa, temperature 85°; and the cylinder bore is 400mm, the maximum pressure is 150MPa, the temperature is 85°
) The pressing temperature is room temperature~85°C, and the working medium is pure water; The pressing temperature is in the room temperature~200°C, and the working medium is thermal conductive oil
Ifthe user has a working bore, effective working height and working pressure that is different from the table and needs to be tailor-made, or has specific requirements for the working medium and control system, the company can design and manufacture according to the user's requirements.
Thermostatic WIP-400 Series (Integral Type) Standard Specification Model Technical Parameter List List
Model | Cylinder Inner Diameter (mm) | In the tank(mm) | Boost Time（min） | First heating time(min) | temperature(℃) | Temperature control accuracy(℃) | Maximum working pressure(MPa) | Pressurization method |
WIP200 | 200 | 300-900 | 3 | 90 | room temperature-85（S） room temperature-200（Y） | ±2 | 400 | Ultra-high pressure hydraulic booster pump set（0-400MPa） |
WIP250 | 250 | 4 | 90 | |||||
WIP300 | 300 | 8 | 120 | |||||
WIP320 | 320 | 10 | 120 | |||||
WIP400 | 400 | 12 |
1. The initial temperature rise time is related to the height in the cylinder, and the specific temperature rise time is communicated with the manufacturer!
2. Products of different specifications can be customized according to customer needs
Temperature isostatic press100-400MPa
Temperature isostatic press
Warm Isostatic Pressing
It is mainly used for isostatic pressing equipment for powder materials to obtain a solid body under high temperature and pressure. Such as: solid-state batteries, electronic ceramics, multi-layer capacitors, graphite, polyamide rubber material molding, etc. In 2018, our company successfully developed a water-type temperature isostatic press (bore 520mm, maximum pressure 120MPa), and delivered it to the customer for use; From 2018 to 2021, it has successively cooperated with a number of large-scale MLCC manufacturing enterprises to produce and deliver multiple units (bore 320mm, maximum force 200MPa, temperature 85°; and the cylinder bore is 400mm, the maximum pressure is 150MPa, the temperature is 85°
) The pressing temperature is room temperature~85°C, and the working medium is pure water; The pressing temperature is in the room temperature~200°C, and the working medium is thermal conductive oil
Ifthe user has a working bore, effective working height and working pressure that is different from the table and needs to be tailor-made, or has specific requirements for the working medium and control system, the company can design and manufacture according to the user's requirements.
Thermostatic WIP-400 Series (Integral Type) Standard Specification Model Technical Parameter List List
Model | Cylinder inner diameter（mm） | In the tank(mm) | Boost Time（min） | First heating time(min) | temperature(℃) | Temperature control accuracy(℃) | Maximum Operating Pressure (MPa) | Pressurization method |
WIP200 | 200 | 300-900 | 3 | 90 | room temperature-85（S） room temperature-200（Y） | ±2 | 400 | Ultra-high pressure hydraulic booster pump set（0-400MPa） |
WIP250 | 250 | 4 | 90 | |||||
WIP300 | 300 | 8 | 120 | |||||
WIP320 | 320 | 10 | 120 | |||||
WIP400 | 400 | 12 |
1. The initial temperature rise time is related to the height in the cylinder, and the specific temperature rise time is communicated with the manufacturer!
2. Products of different specifications can be customized according to customer needs
