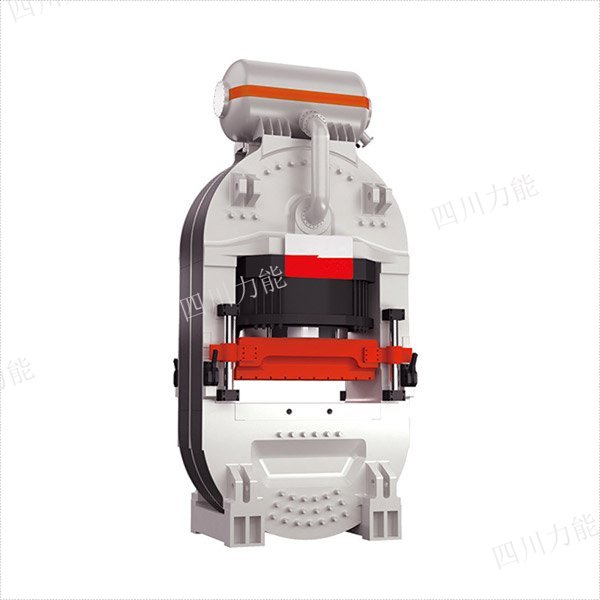

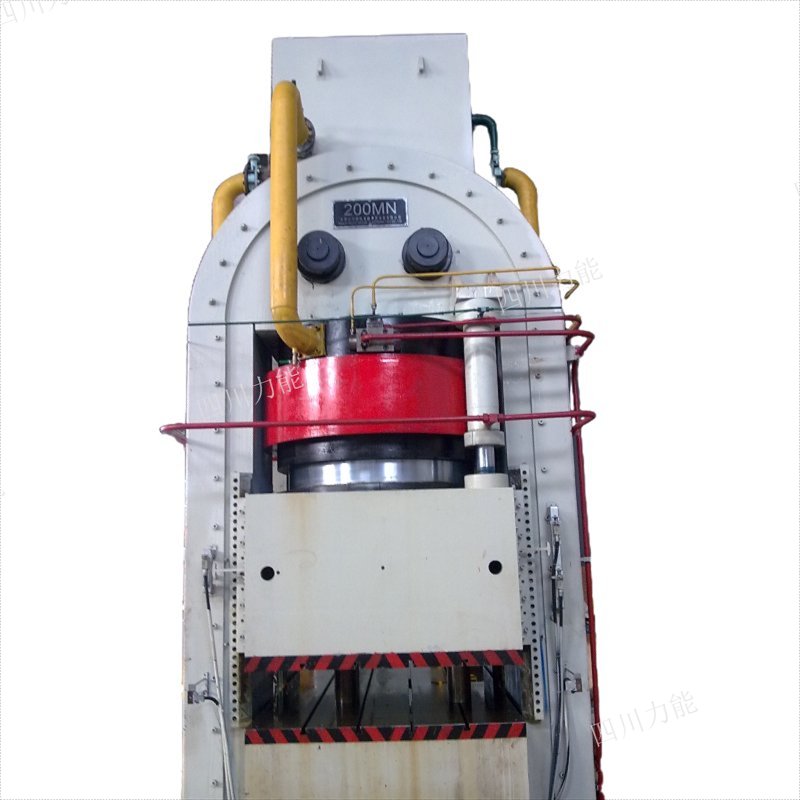

Steel wire winding large tonnage hydraulic press

　　Wire Winding Prestress Hydraulic Press

　　The large steel wire winding hydraulic press is mainly used for the forming of large thin shell plates such as titanium plates and stainless steel plates, as well as the forming process of powder plates and bars, and can also be used for the pressing and forming of large covering parts. It is suitable for cold (hot) extrusion, hardware product embossing, and overlaying processes of metal materials, and is especially suitable for the stretching, extrusion and composite forming process of imitation die-casting aluminum pots.

Usage: Metal cold (hot) extrusion, kitchenware and pot making, clocks, automobiles, motorcycle accessories.

This machine has an independent power mechanism and electrical control system, with centralized control by buttons, and two working modes of manual and semi-automatic selection. Its working pressure and working speed can be adjusted.

This machine has pressure display device, temperature display alarm device, counting display device, pressure holding time setting device, etc.; It has stable working performance, good pressure holding performance, accurate delay, and high degree of automation, and is one of the most advanced press molding equipment for heat exchanger plates and thin plates in China.

Sheet metal hydraulic press is used for high-density corrugated shallow drawing and forming of non-metallic sheets, such as plate heat exchanger plates, hydrogen production electrode plates and silicon carbide plates.

Design, manufacture and acceptance in strict accordance with the industry standard JB/T7348-94 of the People's Republic of China. Our company's metal sheet hydraulic press is constantly innovating; It realizes the unity of fast, efficient and energy-saving, especially the combined plate hydraulic press. It provides an economical and reliable equipment for large and small production of small and medium-sized users.

Features of wire wound hydraulic press:

1. Steel wire wound prestressed structure, strong bearing capacity.

2. Ultra-high pressure supercharge, compact structure.

3. Adopt energy storage technology and frequency conversion technology, high efficiency and energy saving.

4. The electrical is controlled by PLC.

5. Multiple safety protections.

6. Built-in hydraulic control large-diameter check valve.

7. High guidance accuracy and strong anti-bias load.

　　The maximum customization of 24,000 tons of ultra-high tonnage hydraulic press can be made
