Cold isostatic press
share
WeChat
Sina Weibo
QQ

Share on WeChat

×

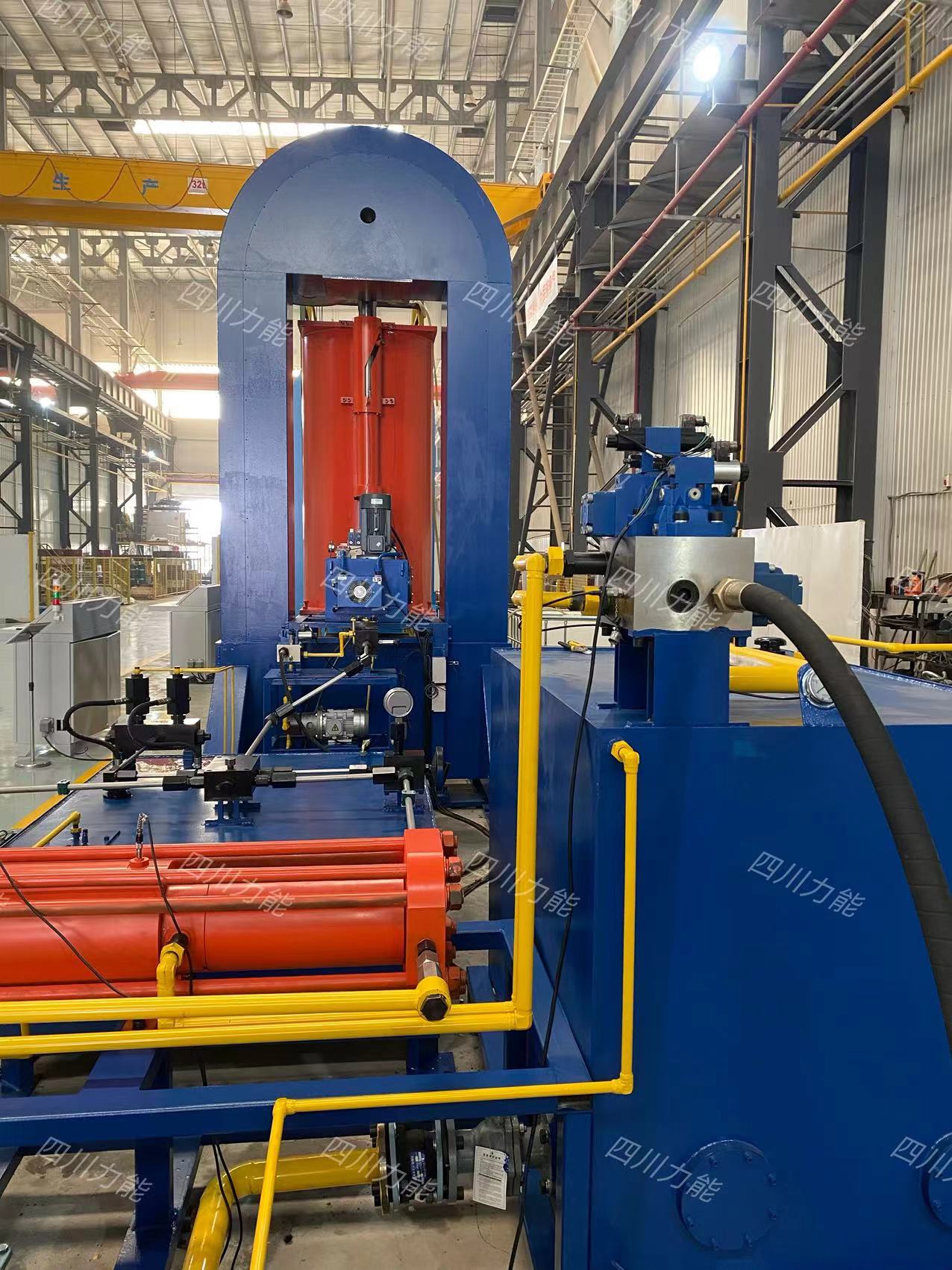

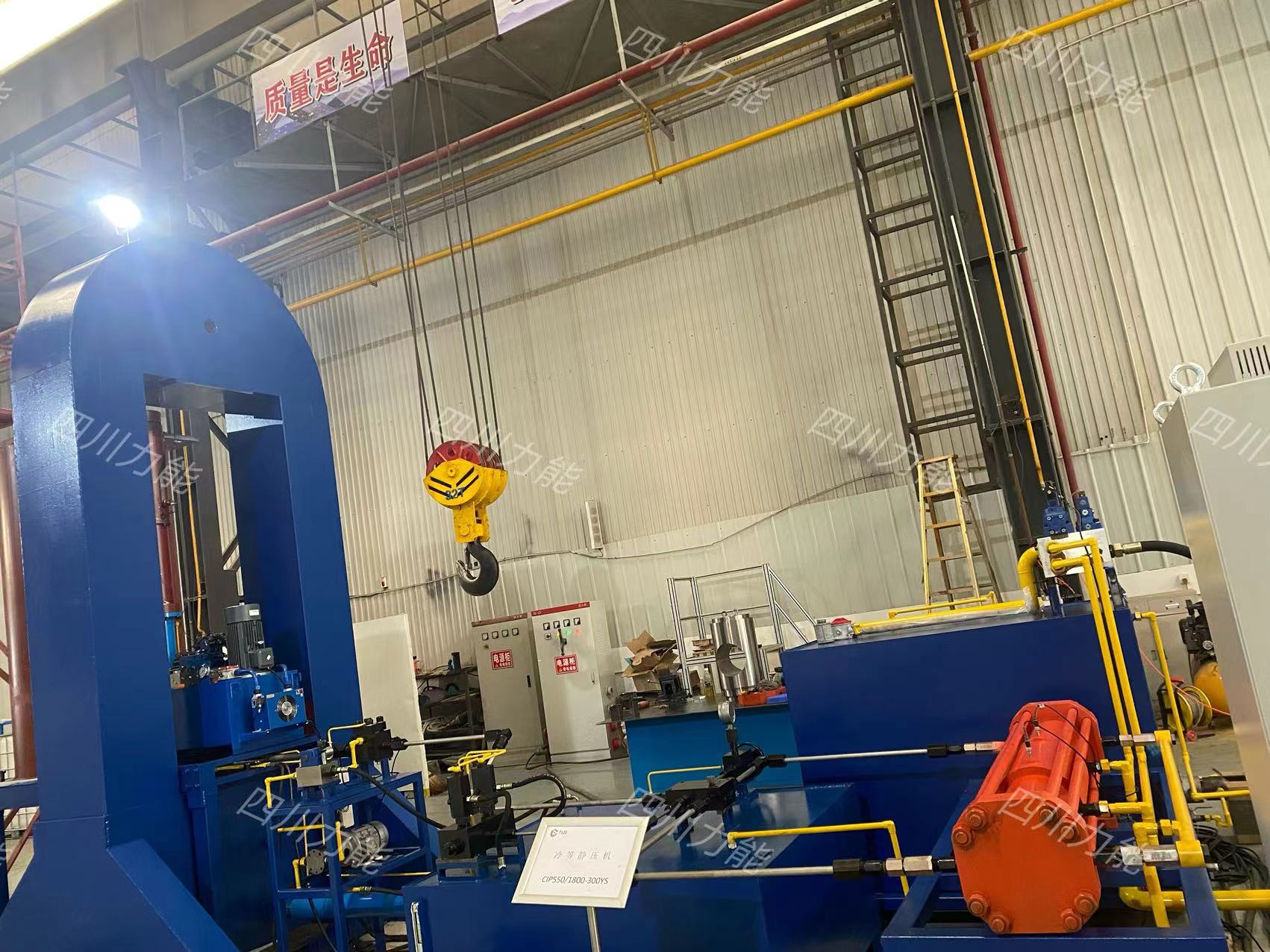

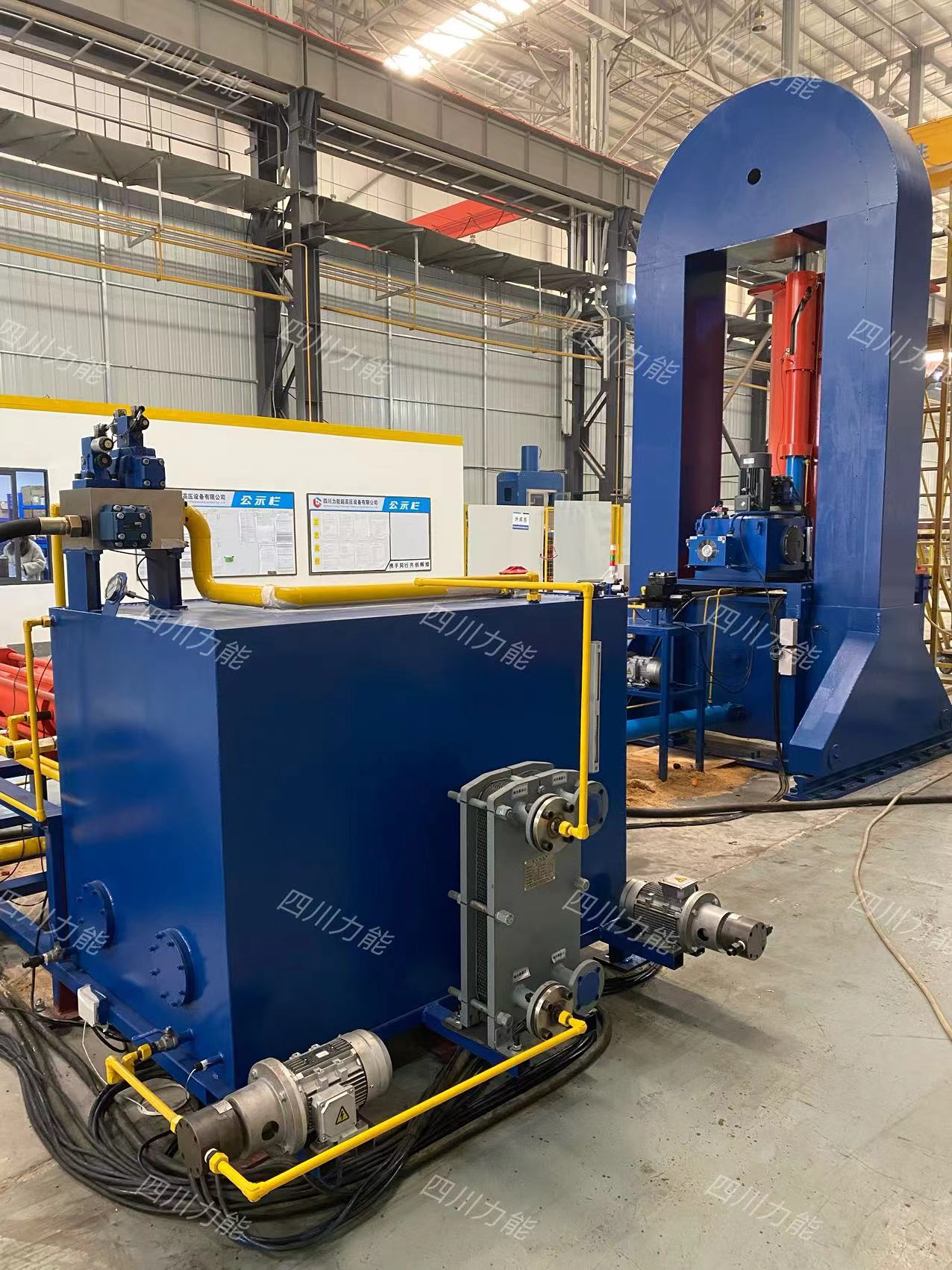

CIP630/2000-300YSCold isostatic press is a steel wire winding structure, mainly composed of a container, cylinder head, cylinder head lifting mechanism, etc. made of core cylinder refining, forging and processing, with the characteristics of long pressure resistance life and high safety factor. The equipment is mainly used in graphite materials, electronic ceramics and other industries, and is formed using the wet bag method.
13679590336
Product Details:

Main technologiesparameter

  1.  Working cylinder inner diameter            630  mm

  2.  Working cylinder effective height           2000  mm

  3.  **Work stress             ;500 MPa

  4.  Pressurized to without loading300MPa    Time ≤6min

  5.  The working medium in the cylinder:    自来水+Emulsion  624L

  6. Installed power             87kw

  7. Ground installation area          31.77 ㎡

  8. The weight of the whole machine           ≈80T


Cold isostatic press
Cold isostatic press
Cold isostatic press

Cold isostatic press

share
WeChat
Sina Weibo
QQ

Share on WeChat

×
CIP630/2000-300YSCold isostatic press is a steel wire winding structure, mainly composed of a container, cylinder head, cylinder head lifting mechanism, etc. made of core cylinder refining, forging and processing, with the characteristics of long pressure resistance life and high safety factor. The equipment is mainly used in graphite materials, electronic ceramics and other industries, and is formed using the wet bag method.
13679590336
Cold isostatic press
Ultra-high pressure food sterilization equipment
Product Details:

Main technologiesparameter

  1.  Working cylinder inner diameter              630  mm

  2.  Working cylinder effective height           2000  mm

  3.  **Work stress             500 MPa

  4.  Pressurized to without loading300MPa    Time ≤6min

  5.  The working medium in the cylinder:    Tap water + Emulsion  624L

  6. Installed power             87kw

  7. Ground installation area           31.77 ㎡

  8. The weight of the whole machine               ≈80T
