Shenzhen project

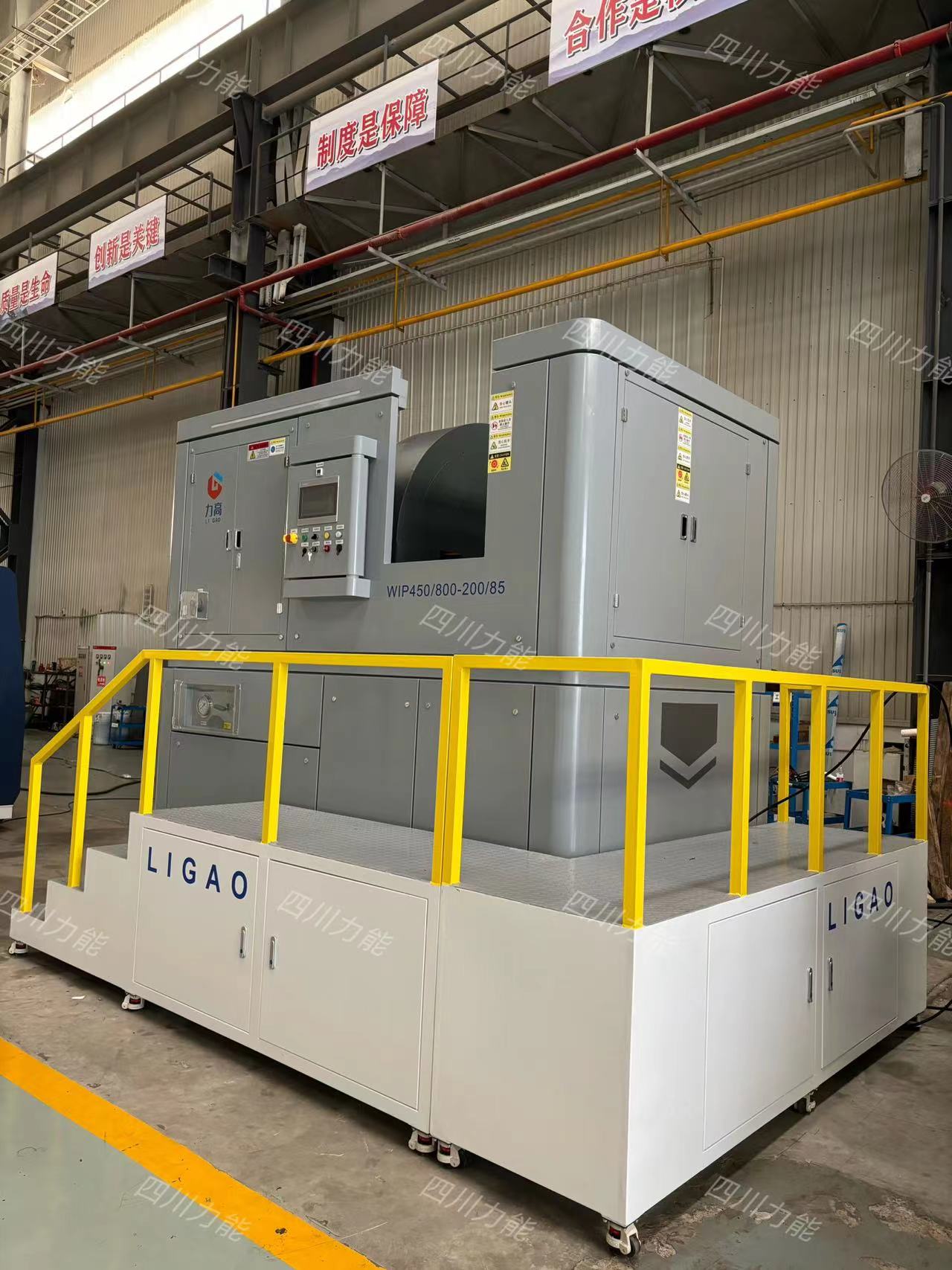

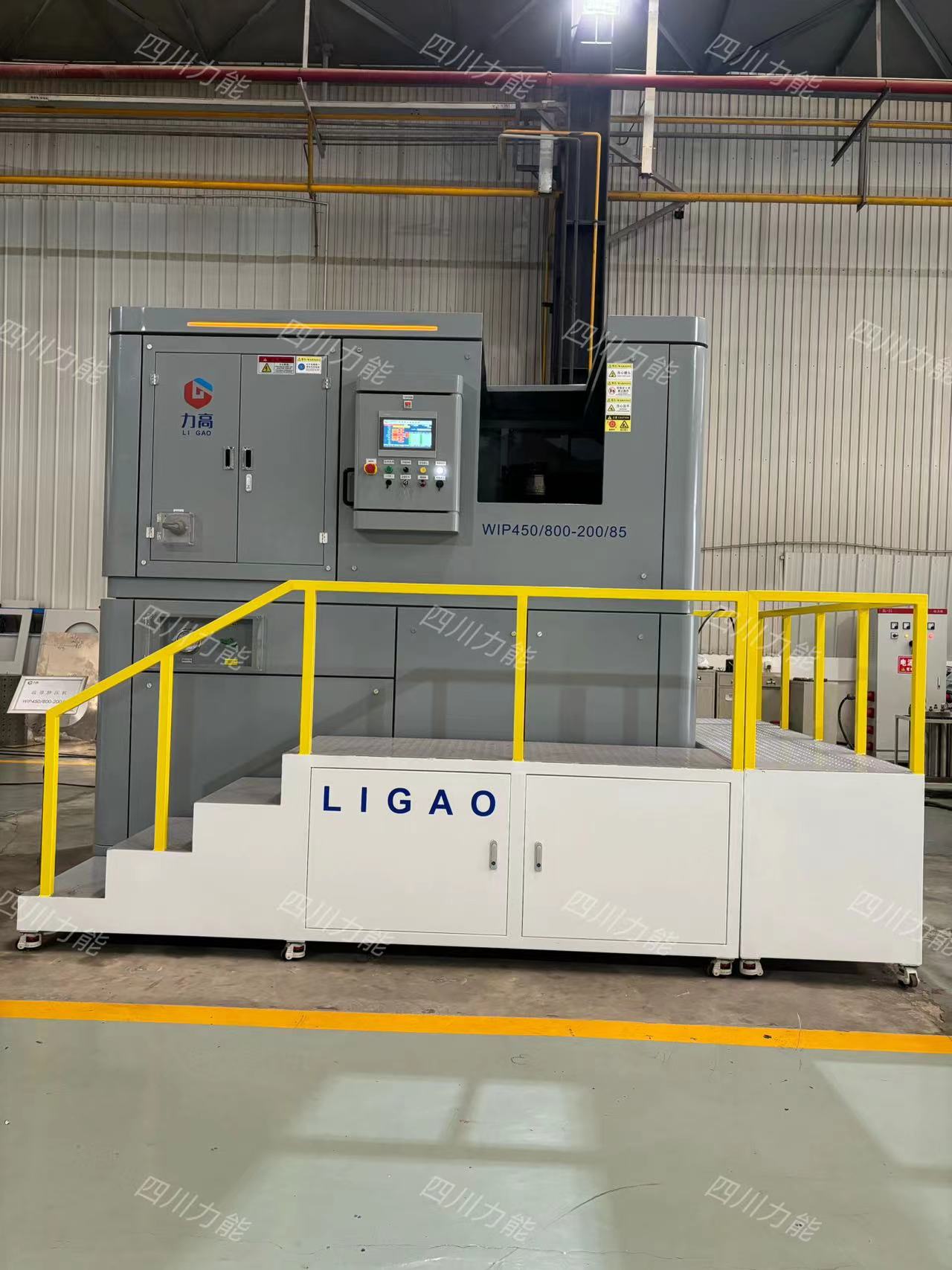

The browser's built-in sharing function is also very useful~ Shenzhen project's customized isostatic press, model: WIP450/800-200/85 is mainly composed of core refining, forging and processing containers, cylinder heads, winding frames, cylinder head lifting mechanisms, etc. The working cylinder is installed on the working cylinder seat; The ultra-high pressure vessel is installed in the thermal circulation water tank, which has high heat preservation and replenishment accuracy, and the temperature of the inner cavity of the vessel is stable for a long time.
Shenzhen project
Shenzhen project's customized isostatic press, model: WIP450/800-200/85 is mainly composed of core refining, forging and processing containers, cylinder heads, winding frames, cylinder head lifting mechanisms, etc. The working cylinder is installed on the working cylinder seat; The ultra-high pressure vessel is installed in the thermal circulation water tank, which has high heat preservation and replenishment accuracy, and the temperature of the inner cavity of the vessel is stable for a long time.
Main technologiesparameter
Working cylinder inner diameter φ450 mm
Working cylinder effective height 800 mm
**Work stress 200 MPa
Pressurized to without loading200MPa Time ≤10min
The working medium in the cylinder: Deionized water 127L
Installed power 65kw
Ground installation area 8.3 ㎡
The weight of the whole machine ≈14T
