Shijiazhuang project
The browser's built-in sharing function is also very useful~Shijiazhuang projectWIP320/320-250/90Temperature isostatic press采用厚壁容器结构，主要由芯筒精炼锻造及加工而成的容器、缸盖、缸盖提升机构等组成，具有耐压寿命长、安全系数高等特点。该设备主要应用于石墨材料、电子陶瓷等行业，采用湿袋法成型。
Shijiazhuang project

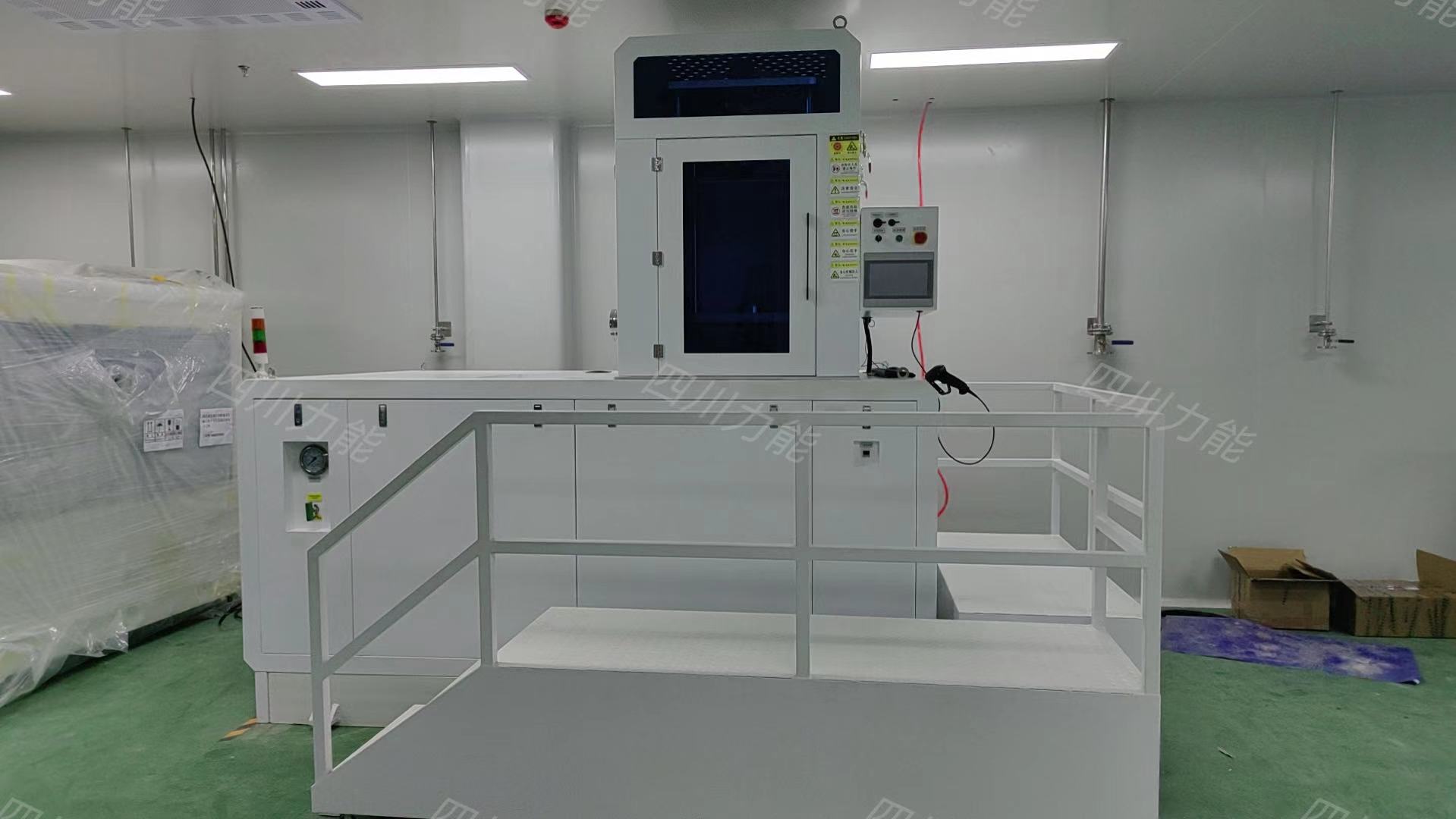

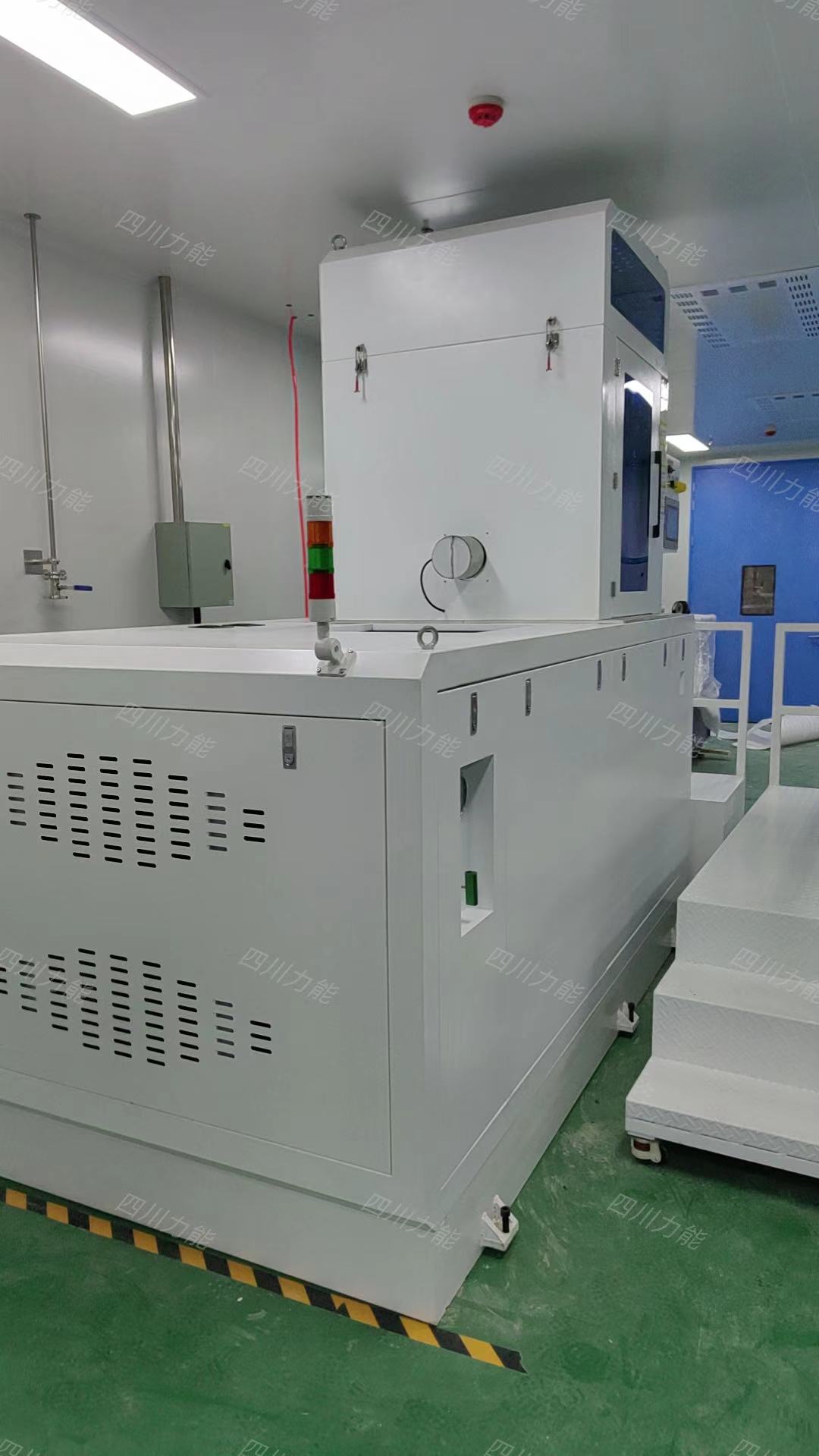

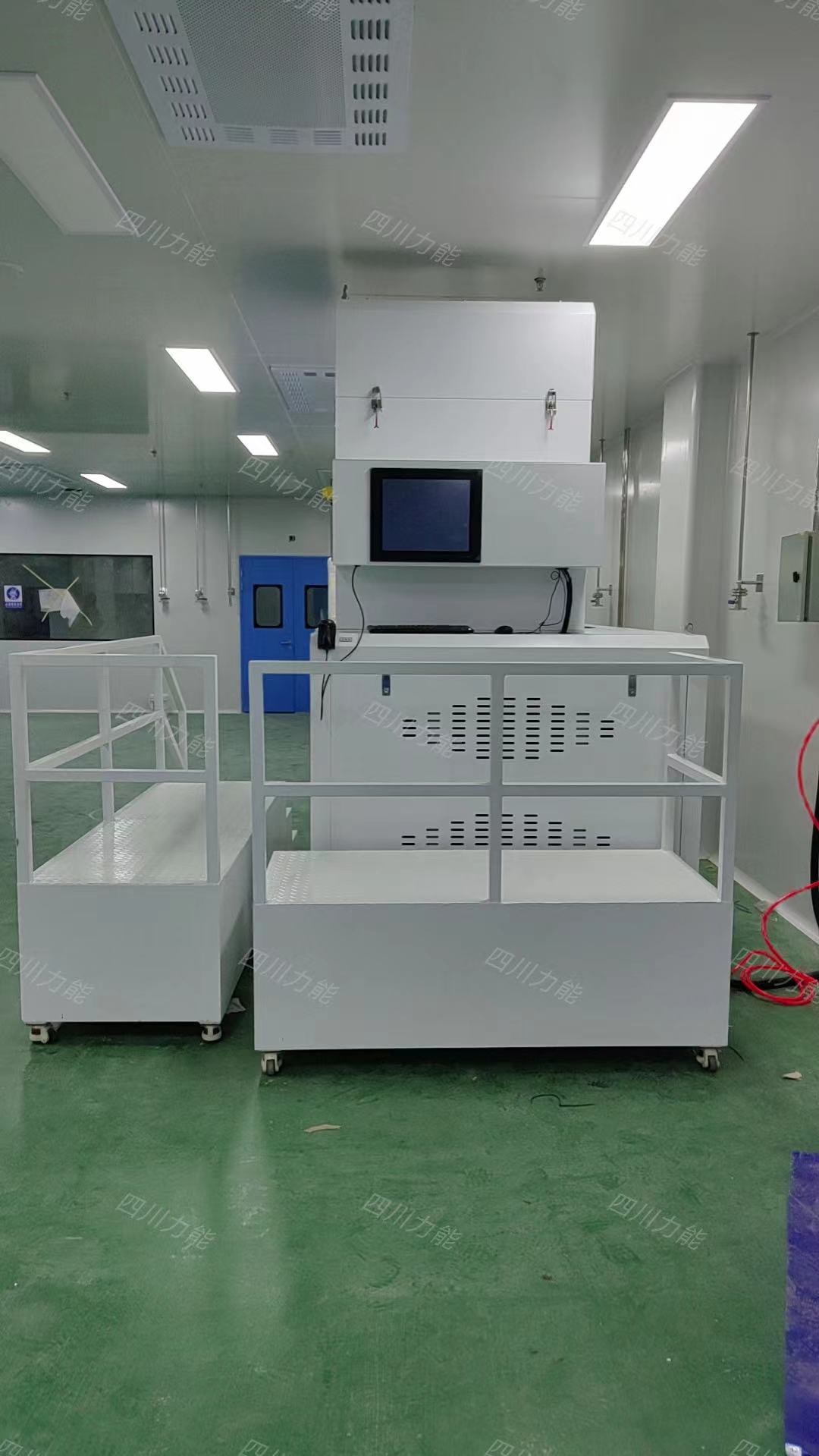

Shijiazhuang projectWIP320/320-250/90The temperature isostatic press adopts a thick-walled container structure, which is mainly composed of a container, cylinder head, cylinder head lifting mechanism, etc. made by core cylinder refining, forging and processing, which has the characteristics of long pressure resistance life and high safety factor. The equipment is mainly used in graphite materials, electronic ceramics and other industries, and is formed using the wet bag method.
Main technologiesparameter：
Working cylinder inner diameter 320 mm
Working cylinder effective height 320 mm
**Work stress 250 MPa
Warm and other working temperatures 90℃
Temperature control accuracy ±2℃
Pressurized to without loading250MPa Time ≤5min
The working medium in the cylinder:Deionized water 25.7L
Installed power 41kW
Ground installation area(Stairs included) 9㎡
The weight of the whole machine 7.3T
