Temperature isostatic press project
The browser's built-in sharing function is also very useful~WIP230/600-660/150YC2Temperature isostatic press is an ultra-high pressure Temperature isostatic press that uses a combined steel wire winding frame + steel wire container, which has the characteristics of long pressure resistance life and high safety factor.
Temperature isostatic press project

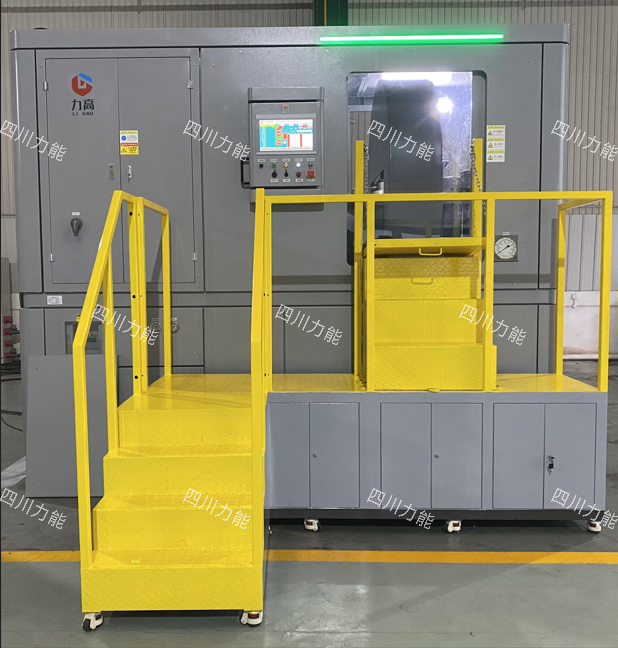

WIP230/600-660/150YC2 isostatic press is an ultra-high pressure isostatic press with a combined steel wire winding frame + steel wire container, which has the characteristics of long pressure life and high safety factor.
Main technologiesparameter
Working cylinder inner diameter 230 mm
Working cylinder effective height 600 mm
**Work stress 600 MPa
Pressurized to without loading600MPa Time ≤7min
The working medium in the cylinder: Thermal oil ≈28.7
Installed power 86kw
Ground installation area 10.26㎡
The weight of the whole machine ≈18.65T
www.ailineng.com
