Zhaoqing project

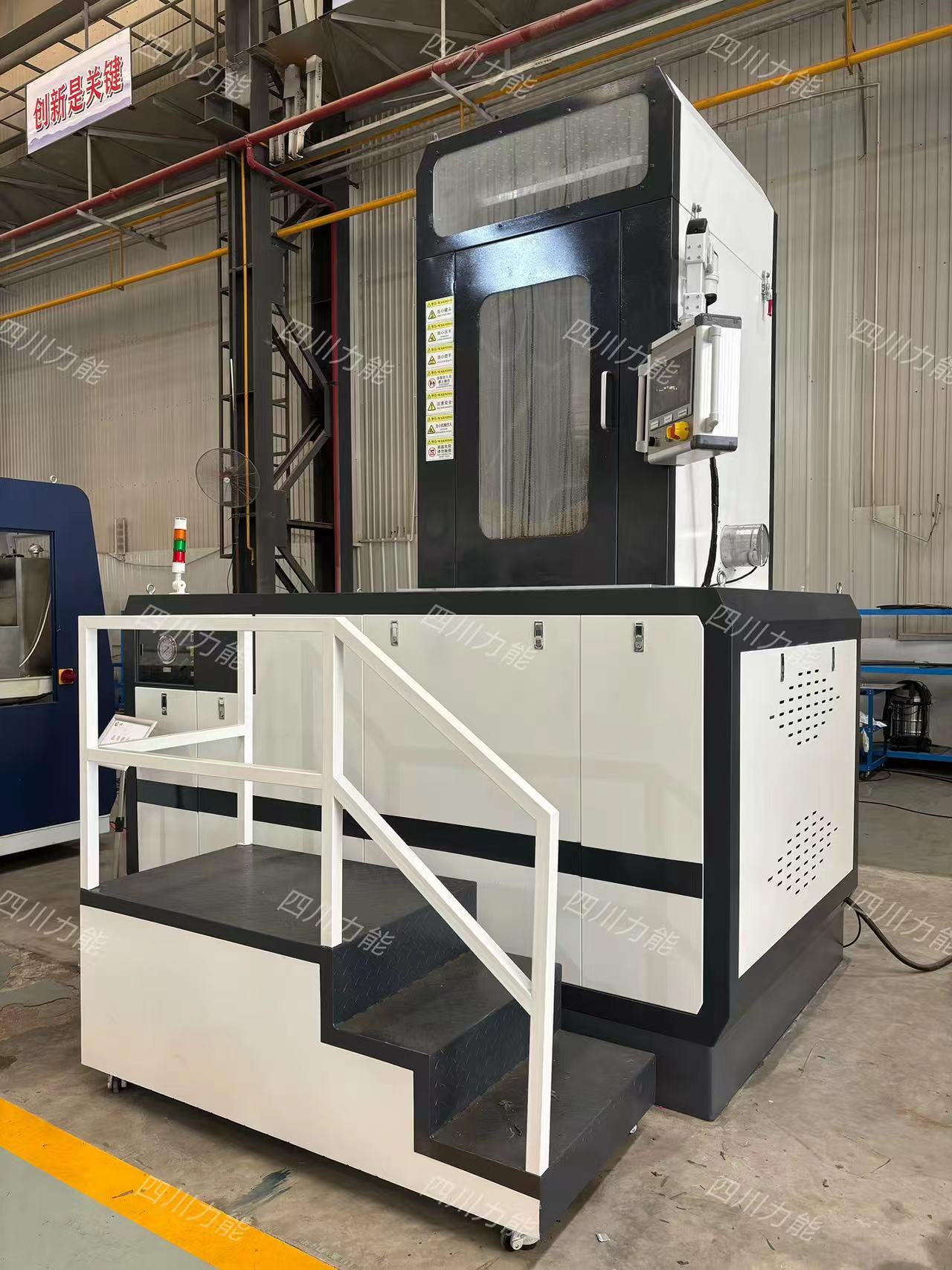

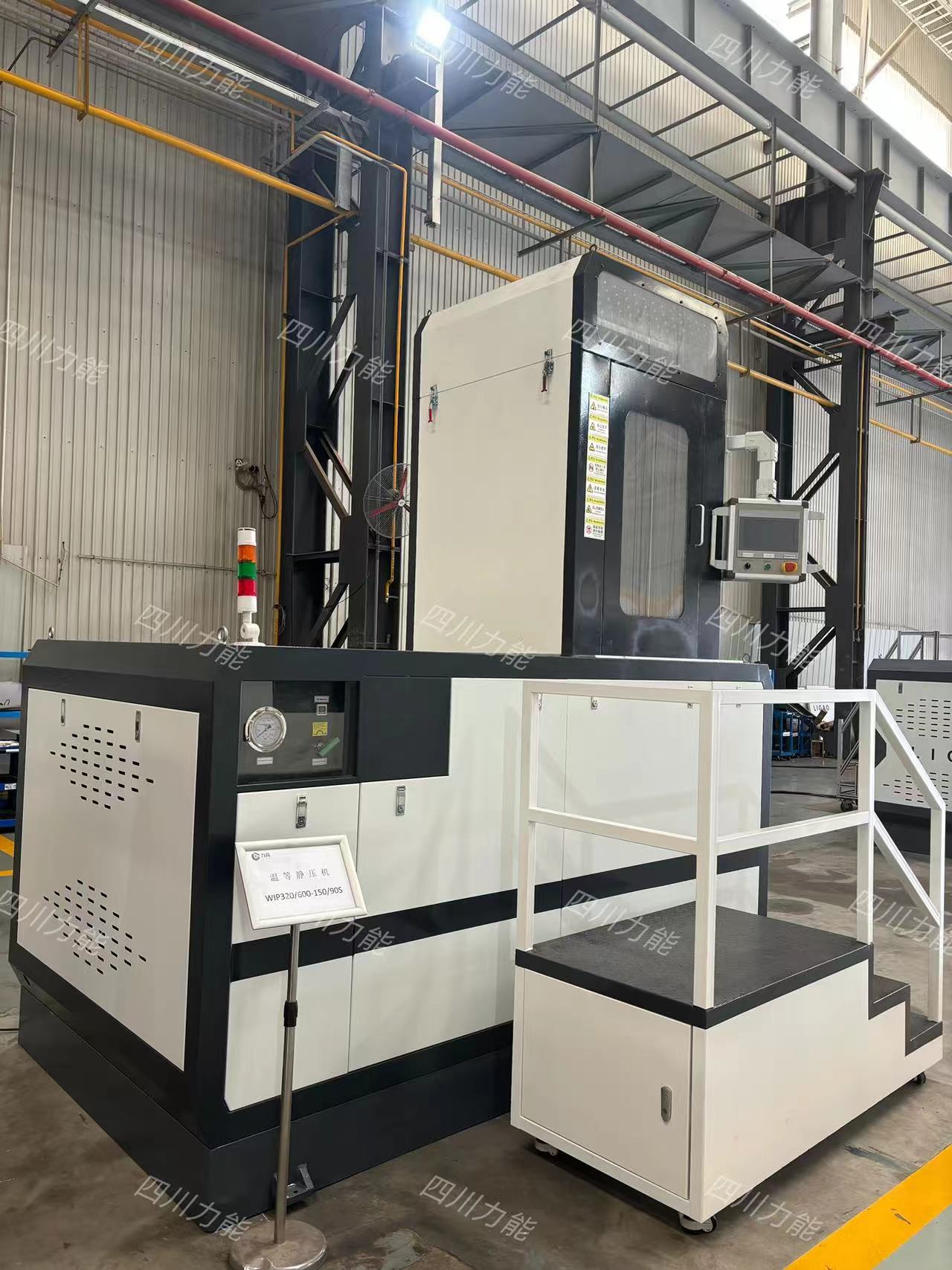

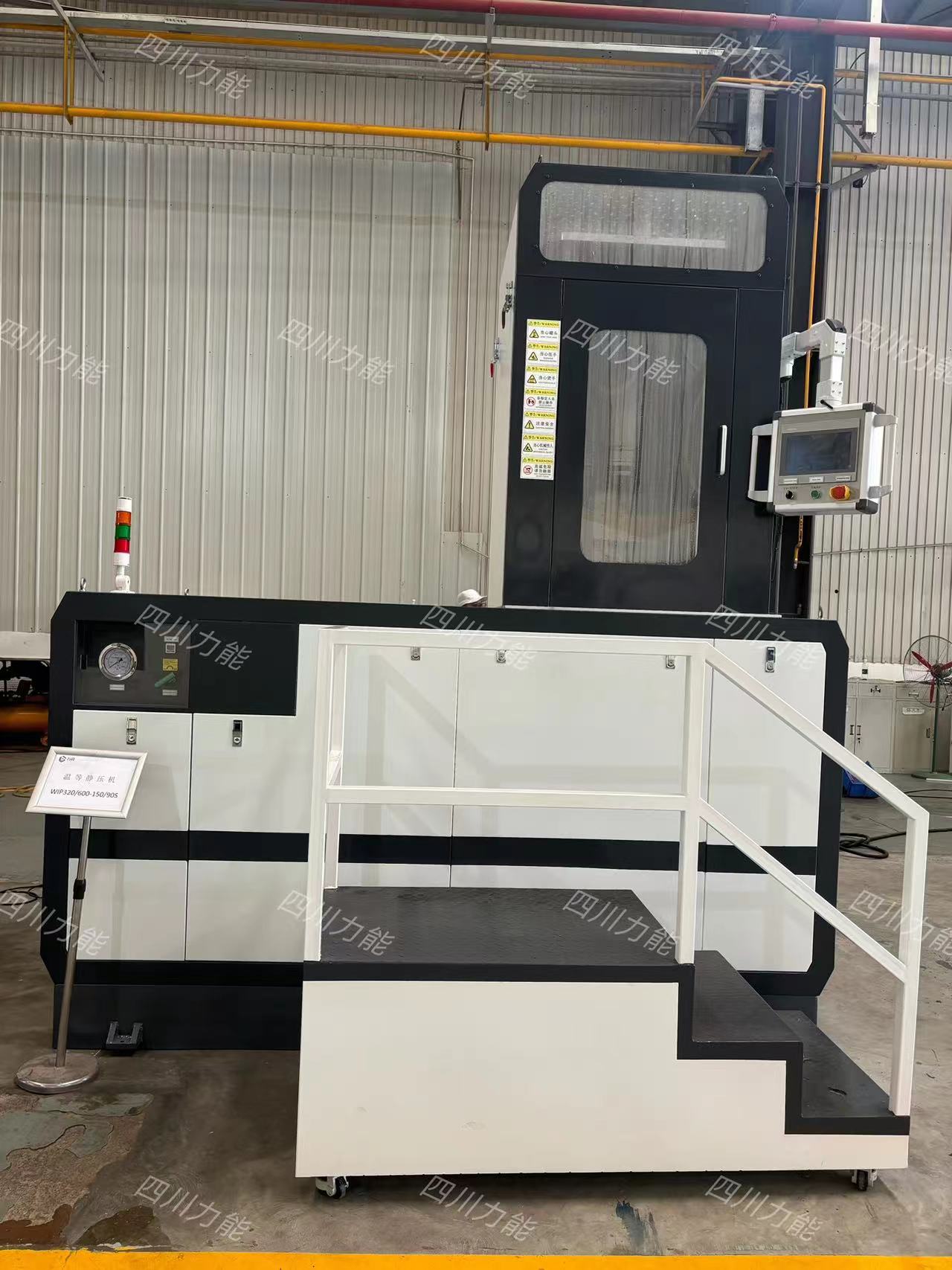

The browser's built-in sharing function is also very useful~Zhaoqing project：WIP320/600-150/90S temperature isostatic press adopts thick-walled container structure, which is mainly composed of core cylinder refining, forging and processed containers, cylinder heads, cylinder head lifting mechanisms, etc., which have the characteristics of long pressure resistance life and high safety factor. The equipment is mainly used in graphite materials, electronic ceramics and other industries, and is formed using the wet bag method.
Zhaoqing project
Zhaoqing project: WIP320/600-150/90S temperature isostatic press adopts thick-walled container structure, mainly composed of core cylinder refining, forging and processed container, cylinder head, cylinder head lifting mechanism, etc., with the characteristics of long pressure resistance life and high safety factor. The equipment is mainly used in graphite materials, electronic ceramics and other industries, and is formed using the wet bag method.
Main technologiesparameter
Working cylinder inner diameter 320mm
Working cylinder effective height 600mm
**Work stress 150MPa
Warm and other working temperatures 90℃
Temperature control accuracy ±2℃
Pressurized to without loading150MPa Time ≤6min
The working medium in the cylinder:Deionized water 48L
Installed power 33kW
Ground installation area(Stairs included) 6.2㎡
The weight of the whole machine 7.9T
