Chengdu temperature isostatic press was successfully delivered

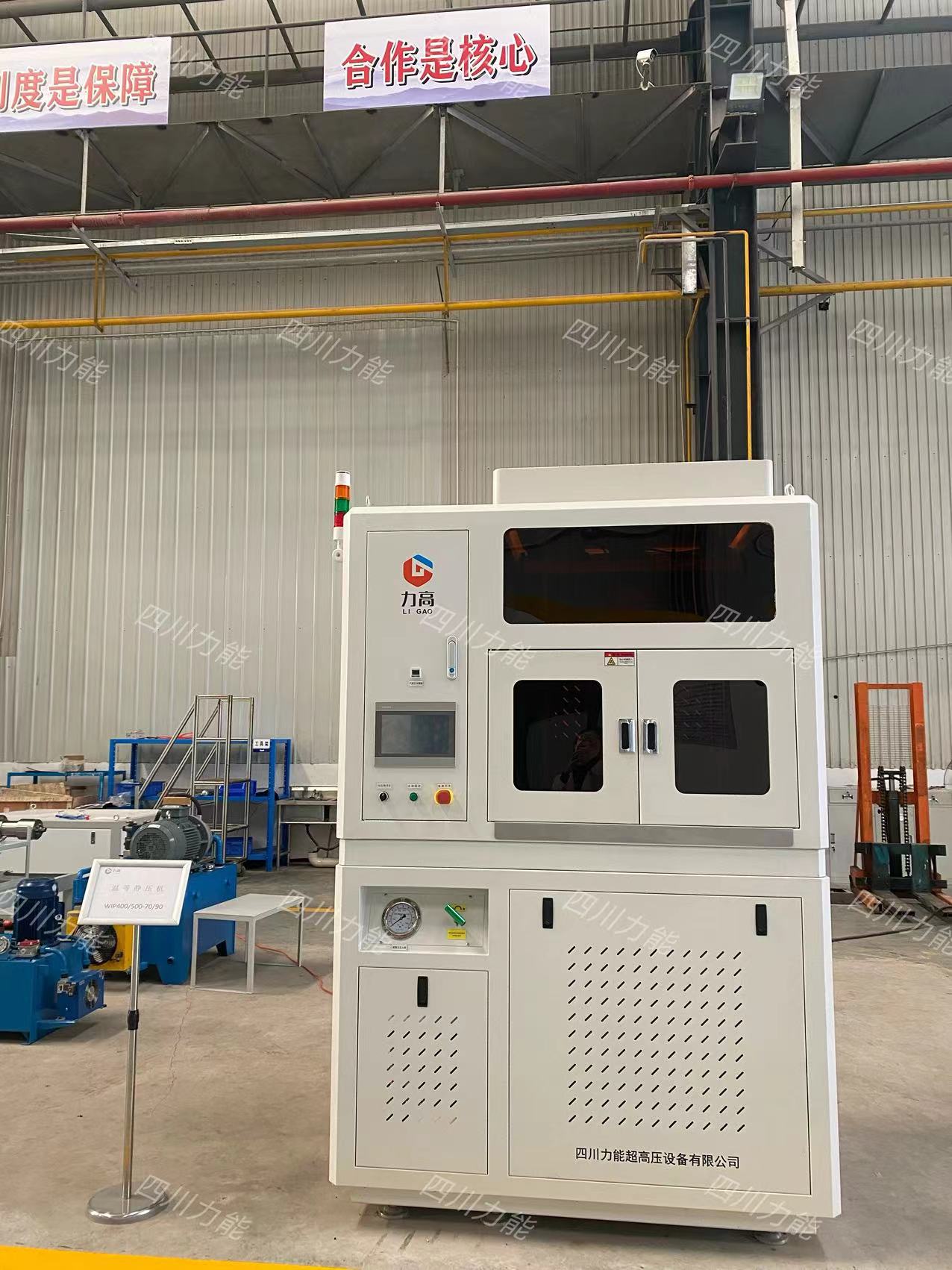

WIP300/450-80/85 temperature isostatic press is mainly composed of containers, cylinder heads, cylinder head lifting mechanisms, etc. made of core cylinder refining, forging and processing, with the characteristics of long pressure resistance life and high safety factor. The equipment is mainly used in graphite materials, electronic ceramics and other industries, and is formed using the wet bag method.
2023-12-23 11:22:39Wang Xuemei36
Working cylinder inner diameter 300 mm
Working cylinder effective height 450 mm
**Work stress 780 MPa
Pressurized to without loading80MPa time ≤5min
The working medium in the cylinder: Deionized water ≈51.6L
installed power 27kw
Ground installation area 1.52 ㎡
The weight of the whole machine ≈2.5T
